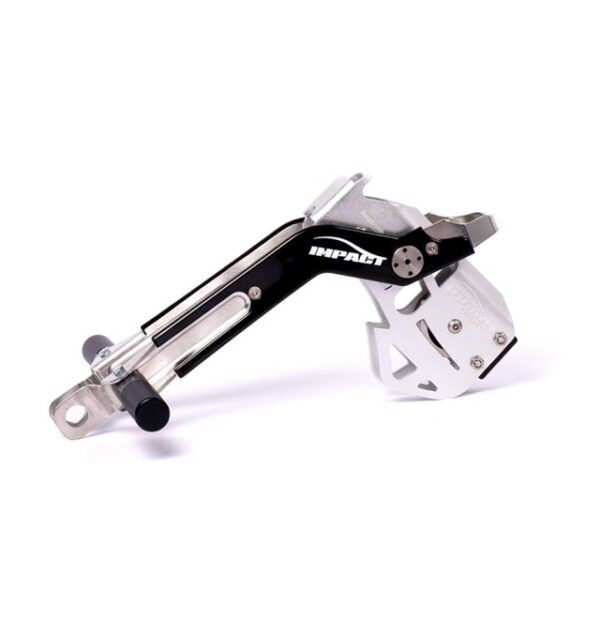

LightSpeed Impact Zip Line Trolley - Image 1

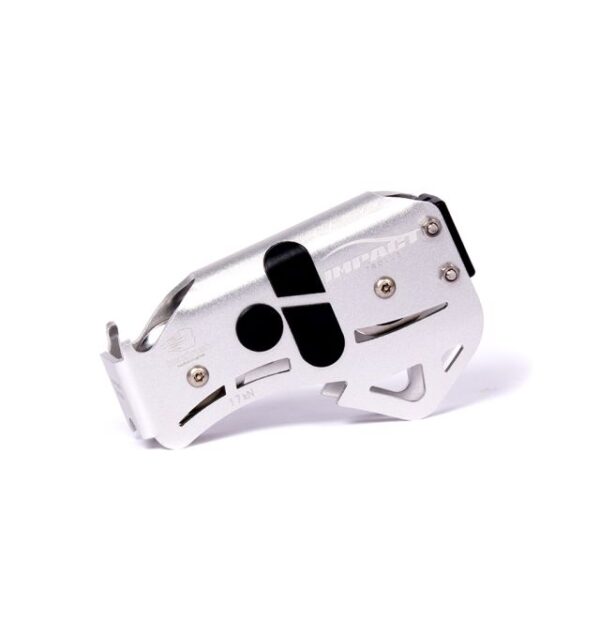

LightSpeed Impact Zip Line Trolley - Image 2

LightSpeed Impact Zip Line Trolley

Our basic Trolley, designed for the best customer ride experience and smooth impact braking with the zipSTOP Zip Line brake. Operators can always add on features (catch accessory, T-handle, etc.) as their needs evolve.

Trolley Type
(Choose an Option)
With Hook
No T-Handle or Hook
With T-Handle

With Hook and T-Handle

PRODUCT DETAILS:

  • Only trolley designed for impact braking
  • Rated for higher speeds, up to 70 mph (112.65 km/h)
  • Simple, single-step mounting maximizes throughput
  • Increased performance with comparable cost to other trolleys
  • Anodized aluminum increases strength while being corrosion resistant
  • Cost savings potential through less frequent cable, trolley and brake part replacements
  • Longer lifespan
  • Lightweight design
  • Multiple clip-in points for enhanced safety

SPECIFICATIONS:

  • Model IT-100 (the standard Impact Trolley)
  • Dimensions: 7.1 x 4.4 x 1.3 in (180 x 111 x 33 mm)
  • Net Weight: 1.2 lbs (544 grams)
  • Working Temperatures: Minimum: -40°C/-40° F
  • Maximum: 80°C/176°F
  • Maximum Operating Speed: 75 mph (120 kph)
  • Materials: Housing: Anodized Aluminium Sheaves: Stainless Steel
  • Impact Surface: ABS Plastic
  • Rated Working Capacity: 33-330 lbs (15-150 kg)
  • Maximum Load Rating: 17 kN (3,822 lbf)

Min/Max Cable diameter: 9.5 ≤ Dia ≤ 19 mm (3/8” ≤ Dia ≤ 3/4”)
