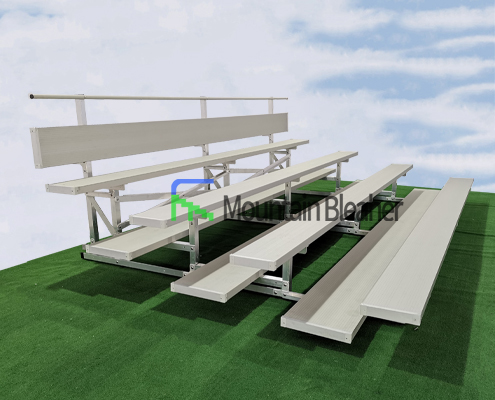

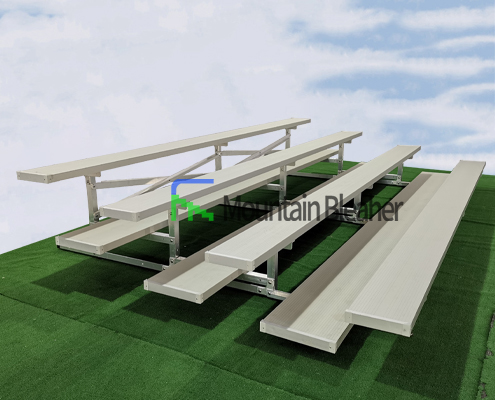

4F-S250-291
This series of products are made of 6061-T6 aluminum alloy material，suitable for using in all kinds of weather environments.The bolt is 304 stainless steel, and we provides 12 different models for you to choose, each model details please refer to the drawing.
Product advantages: High strength、Portable、Corrosion resistant
Material of Support Structure: 50mm*5mm Aluminum Angle
4 Kinds of Foot Plank for your choice: 250mm*38mm*2mm，250mm*50mm*2mm，291mm*50mm*2mm，397mm*50mm*2mm;
3 Kinds of Aluminum Seat Plank: 250mm*38mm*2mm，250mm*50mm*2m，291mm*50mm*2mm;
Row Spacing: 650MM、700MM、750MM;
Length: 2286mm,4572mm;

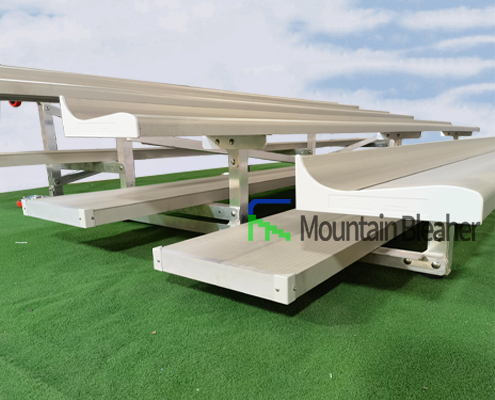

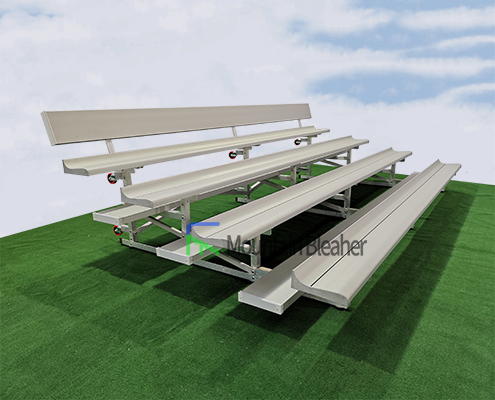

4F-S300
This series of products are made of 6061-T6 aluminum alloy material, Aluminum Seat Plank 300mm*100mm*50mm*2mm.It’s designed according to ergonomics, more safety、comfortable, variety color options are available for the surface layer by powder spraying, more beautiful;
Material of Support Structure:50mm*5mm Aluminum Angle
2 Kinds of Foot Plank for your choice: 291mm*50mm*2mm，397mm*50mm*2mm
Seat Plank：300mm*100mm*50mm*2mm;
Row Spacing:650MM、700MM、750MM;
Length: 2286mm(20 Seats),4572mm(40 Seats);
Total 8 models for this series, please refer to the drawings for the details of each model.
This series of products are the hot-selling products in market.
4F-SH-0
This series of products are match with HDPE Blow Moulded Plastic Seats, more comfortable.At the same time provides a richer color combination, looks more beautiful.
Material of Support Structure:50mm*5mm Aluminum Angle.Material:Aluminum 6061-T6 .Surface treatment: Anodizing；
3 Kinds of Foot Plank: 250mm*50mm*2mm，291mm*50mm*2mm，397mm*50mm*2mm.Material: Aluminum 6061-T6.Surface Treatment:Anodizing；
Length:2286mm，4572mm;
Total 12 models for this series, please refer to the drawings for the details of each model.

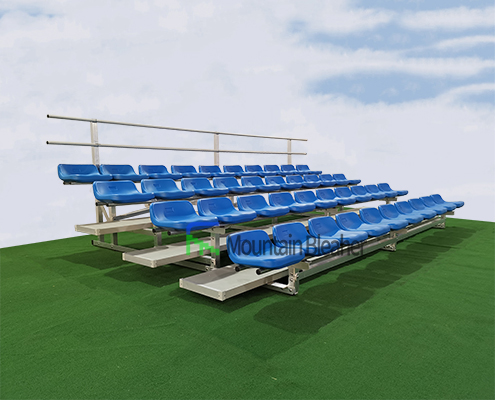

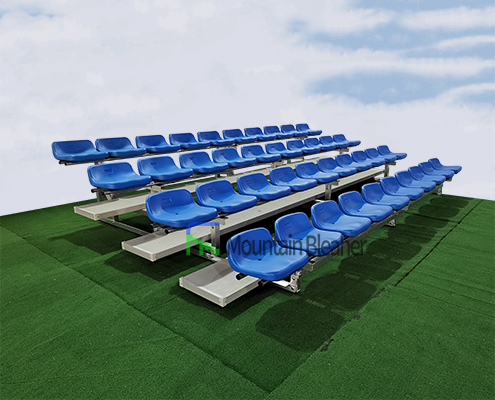

4F-SH-1
This series of products are match with HDPE Blow Moulded Plastic Seats, more comfortable.It’s designed according to ergonomics, more comfortable.Seats can be combined in different colors.Because the seat is more wider, the row spacing of this series of products is recommended to be 700mm and above.
Material of Support Structure:50mm*5mm Aluminum Angle.Surface treatment: Anodizing;
2 Kinds of Foot Plank for your choice: 291mm*50mm*2mm，397mm*50mm*2mm.Material: Aluminum 6061-T6.Surface Treatment: Anodizing.
Length: 2286mm, 4572mm;
Total 6 models for this series, please refer to the drawings for the details of each model.

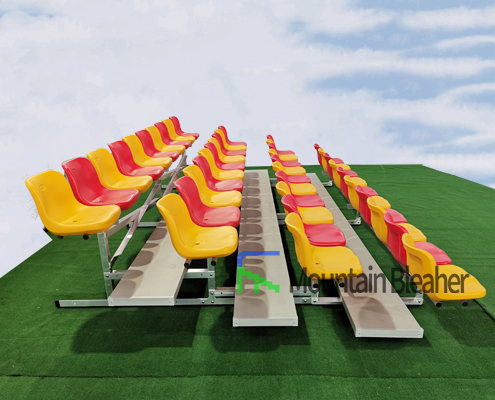

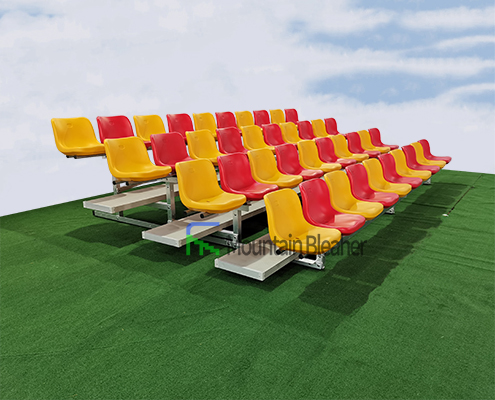

4F-SH-2
This series of products are match with HDPE Blow Moulded Plastic Seats with backrest.It’s designed according to ergonomics, more comfortable.Meanwhile it’s more safety with the protection of backrest.Seats can be combined in different colors. Because the seat is more wider, the row spacing of this series of products is recommended to be 750mm and above.
This series of products is more suitable for indoor or shading environment.
2 Kinds of Foot Plank for your choice: 291mm*50mm*2mm，397mm*50mm*2mm
Row Spacing: 750MM,800MM;
Total 4 models for this series, please refer to the drawings for the details of each model.
